This attribute:
|
Technical Parameters |
Details |
|
Ambient Temperature |
-55°C ~ +125°C |
|
Relative Humidity |
+40°C, 90% - 95% |
|
Air Tightness |
≤1×10⁻⁴ Pa·cm³/s |
|
Insulation Resistance |
≥1000 MΩ |
|
Rated Voltage |
200 V |
|
Withstand Voltage |
1000 V |
|
Service Life |
500 times |
|
Contact Material |
4J29 |
|
Socket Shell Material |
Copper |
|
Socket Sealing Material |
Glass Sintering |
|
Plug Shell Material |
Aluminum |
|
Plug Insulation Material |
Polycarbonate |

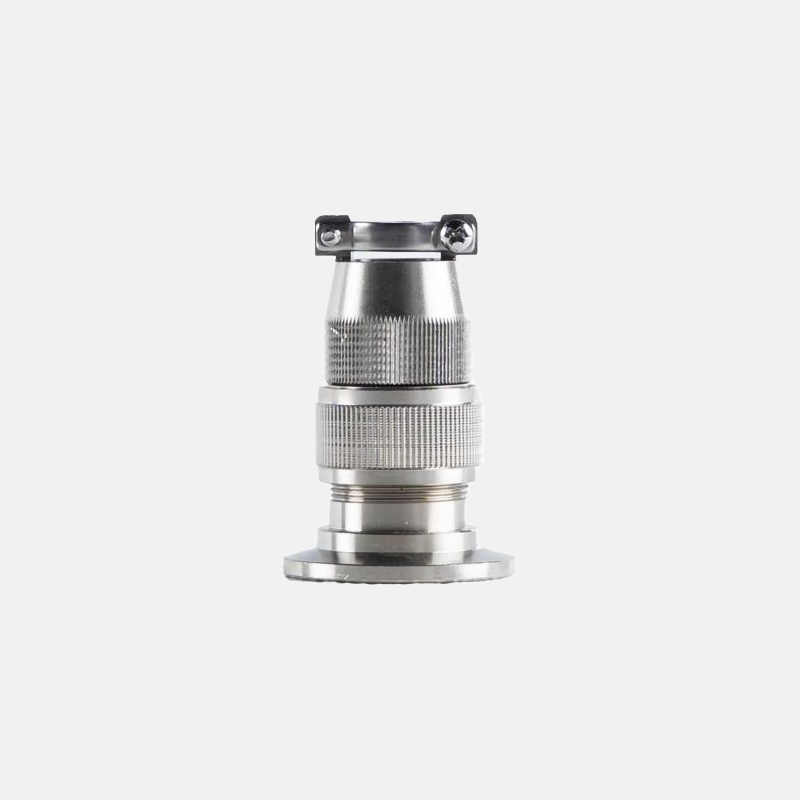

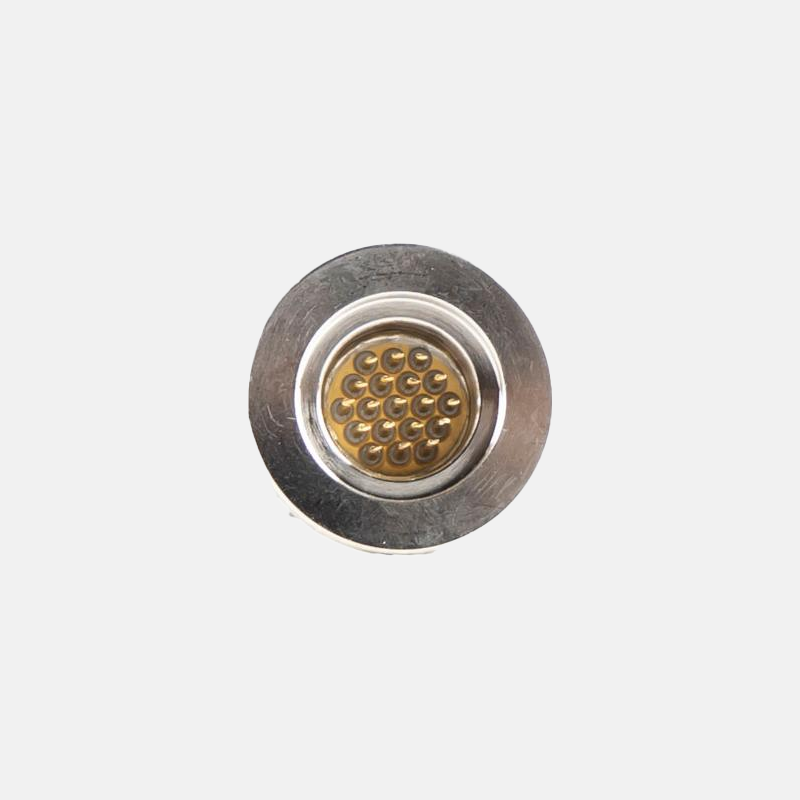

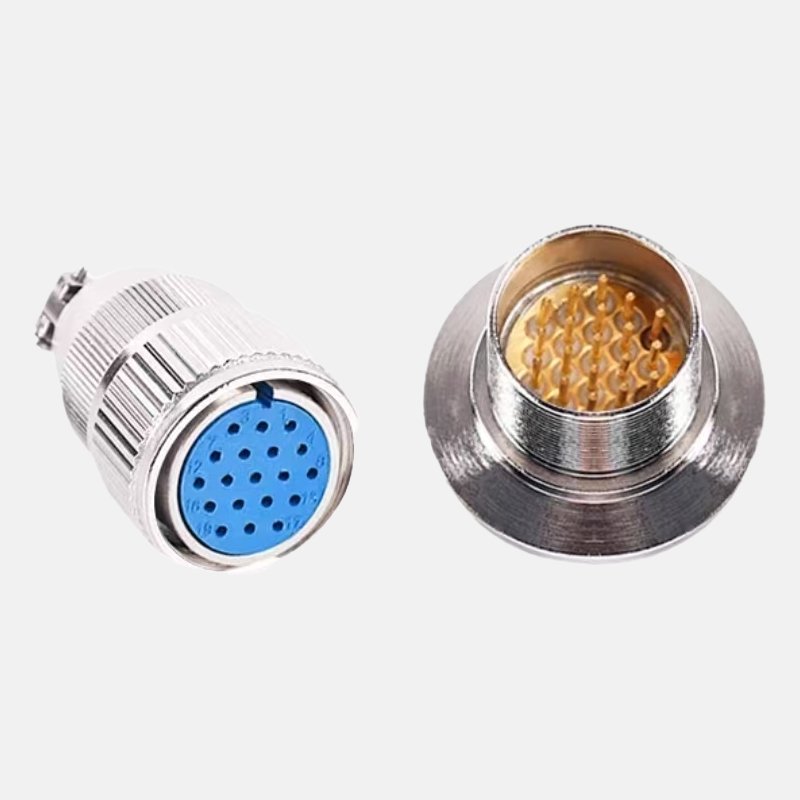

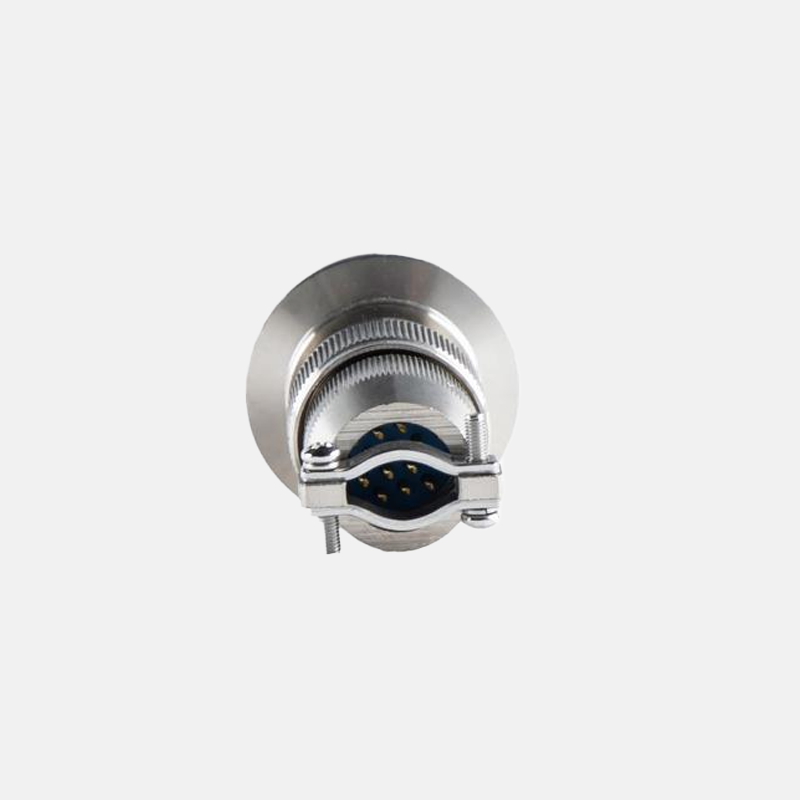

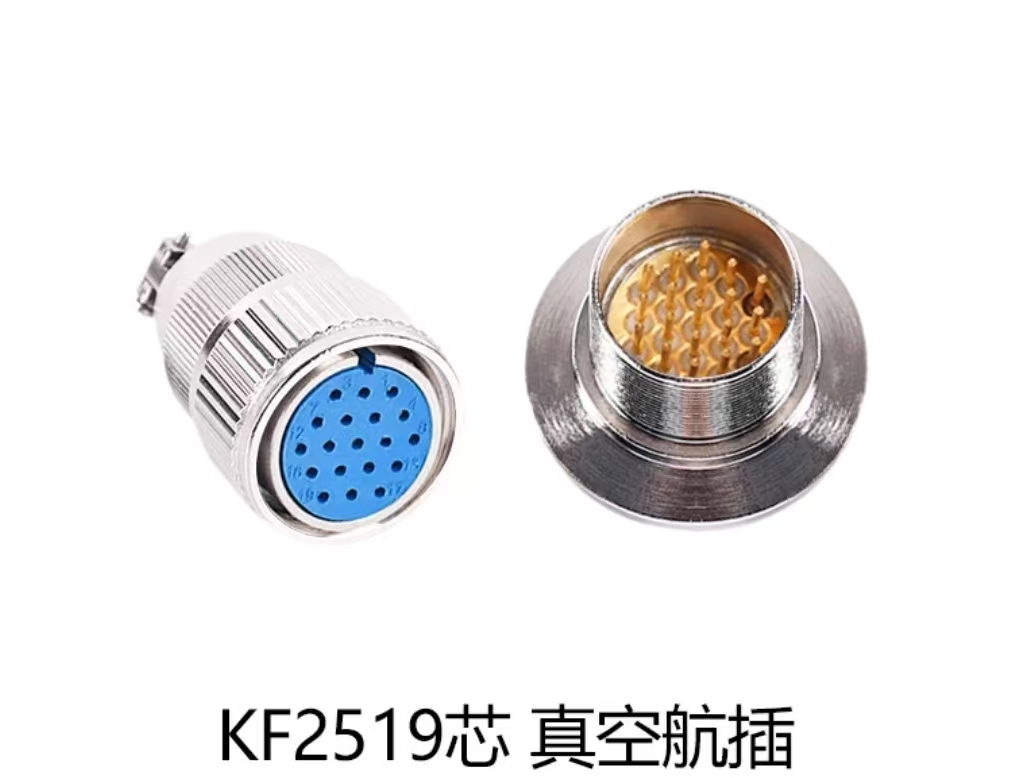

Specification and Model: Aviation Plug Connector K25
Functional Features: Vacuum Box Vacuum Tank Plug Connector.
The aviation plug is highly reliable with low contact resistance, ensuring stable connection. It has waterproof and dustproof properties (IP67/IP68), high temperature resistance, and shock resistance. These characteristics make it suitable for harsh environments. The electromagnetic shielding design protects signals from interference. The quick plug and unplug operation is convenient for installation and maintenance. The corrosion-resistant material extends the service life. The compact structure saves space. The design is flexible and widely used in aviation, industrial, and military fields.
