The FJ6/JTS2 series of multi-purpose terminal blocks are specifically designed for wiring in various electrical control distribution equipment, complete sets of devices, and modular terminal boxes. The rated insulation voltage of this product is 690V, and the rated working voltage is 380V. The maximum cross-sectional area of the connecting wire at the incoming terminal is 120mm2. At the outgoing terminal, the cross-sectional area of the connecting wire can range from 1.5mm2 to 120mm2 depending on the number of connection circuits and the wiring method. This product has a novel and unique structure, firm and reliable wiring, and is convenient and flexible to use. It can be used as potential terminals such as bus bars, large current terminals, grounding terminals, and grounding points in various electrical devices.
Specification model: Haiyan terminal block FJ6/JTS2-70B/6X10
Features:

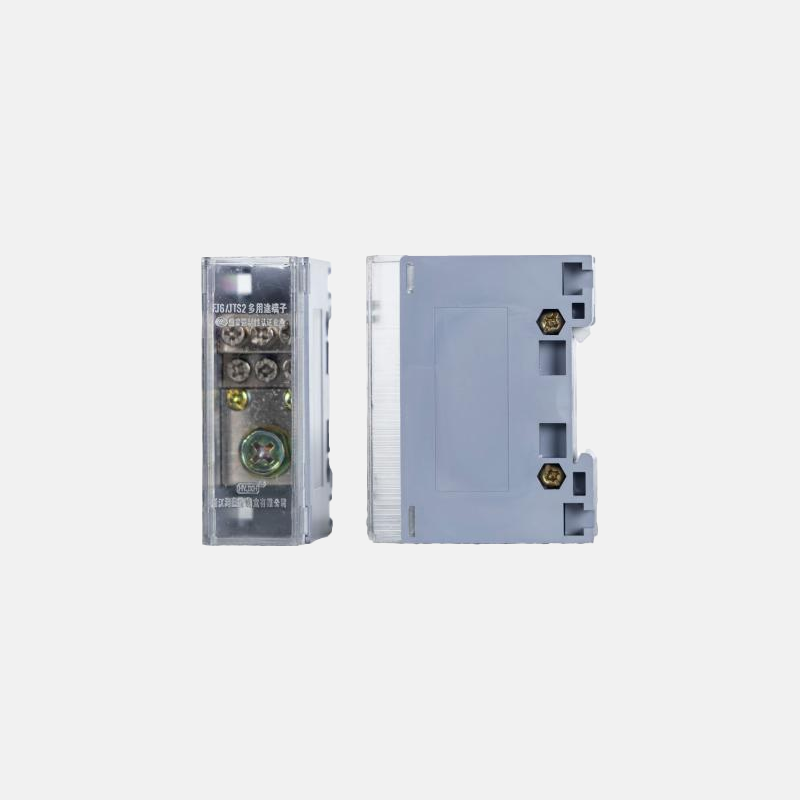

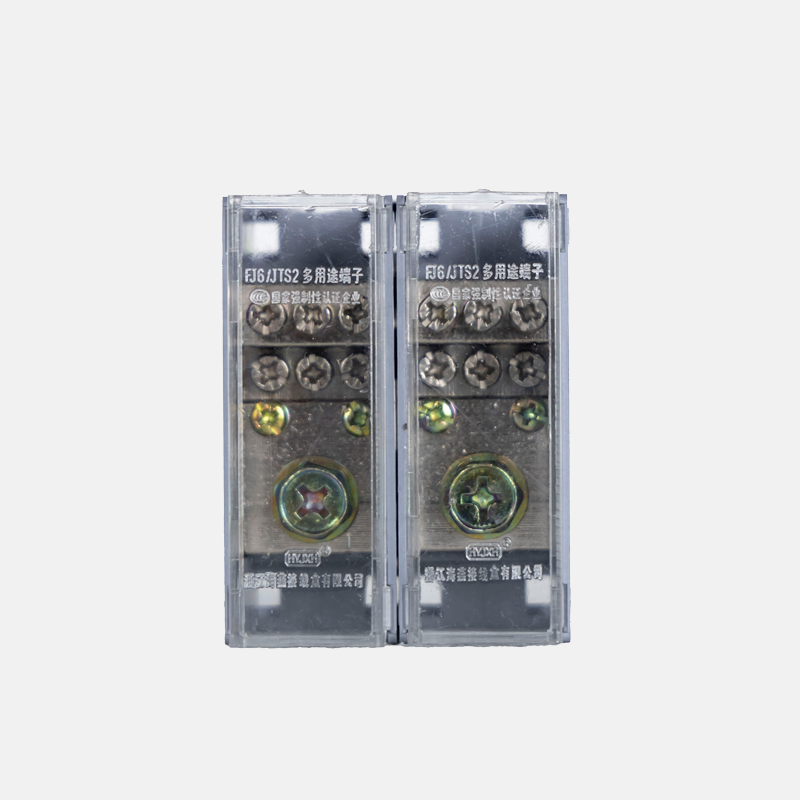

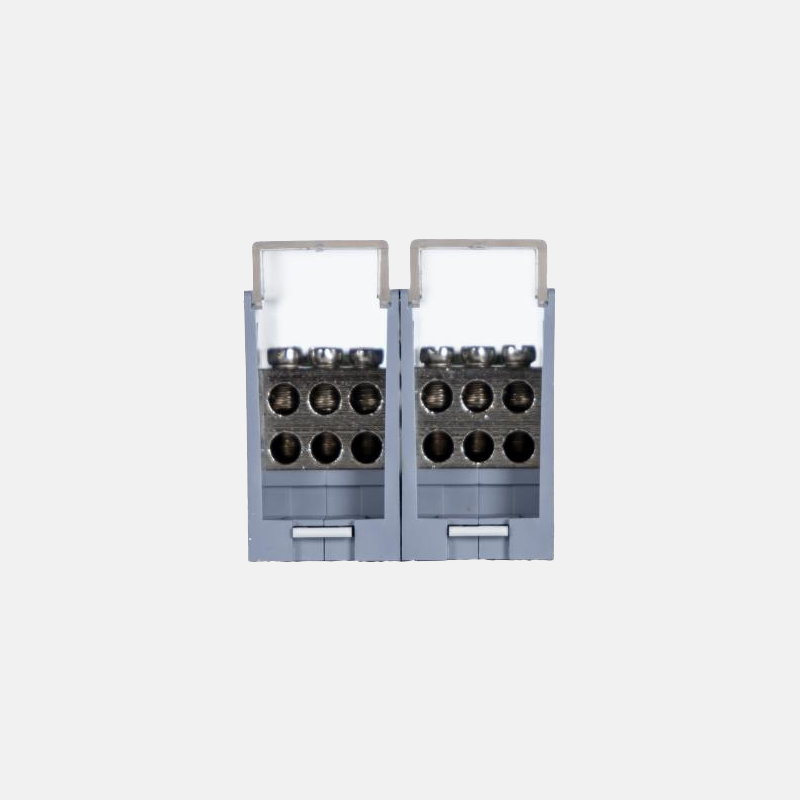

The FJ6/JTS2 series multi-purpose terminal blocks consist of conductive parts, insulating seats, and protective covers. They are small in size and have a reliable structure. The incoming terminal can directly insert the wire (cylinder type connection) or connect it with an OT terminal head (line nose) (plate type connection), and can also be connected to copper strips with a width of ≤30mm. The outgoing terminal is uniformly connected in a cylinder type. The bottom of the compression screw is specially designed with a spherical shape. During compression, it not only does not damage the wire but also provides sufficient pressure on the wire, ensuring a more reliable connection.
