Basic Attributes:
|
Shell |
Waterproof IP67, NEMA4&4X |
|
Wiring Hole |
2NPT1/2" |
|
Ambient Temperature |
-20°C to 80°C |
|
Number of Terminals |
8 points (0.08 - 2.5mm²) |
|
Valve Position Indication |
0 - 9° free rotation; Off: Red; On: Yellow |
|
Switch |
Mechanical switch * 2, Proximity switch * 2 |
|
External Shell Color |
Black |
|
Voltage (VOLTAGE) |
AC: 250V 3A, 125V 5ADC: 250V 0.2A, 125V 0.4A, 30V 4A, 14V 5A, 8V 5A |
|
Rotating Shaft |
Standard shaft (17mm), Extended shaft (17mm) |
|
Installation Instructions |
If actuator 4 is in the off position, switch box 1 should confirm that it displays the CLOSED position. After aligning the groove on the multi - function indicator 3 through the connecting bracket 2 of appropriate height, install it with four bolts. |
Specification Model:
|
Specification Model |
APL - PN2 Series |
APL - PN3 Series |
APL - PN7 Series |
|
Shell |
Waterproof IP67NEMA4&4X |
Waterproof IP67NEMA4&4X |
Waterproof IP67NEMA4&4XExplosion - proof BT6 |
|
Wiring Hole |
2NPT1/2" |
2NPT1/2" |
2NPT3/4" |
|
Ambient Temperature |
-20°C - +80°C |
-20°C - +80°C |
-20°C - +80°C |
|
Number of Terminals |
8 points (0.08 - 2.5mm2) |
8 points (0.08 - 2.5mm2) |
8 points (0.08 - 2.5mm2) |
|
Valve Position Indication |
0 - 90° free rotationOff: Red; On: Yellow |
0 - 90° free rotationOff: Red; On: Yellow |
0 - 90° free rotationOff: Red; On: Yellow |
|
Switches |
Mechanical switches: ×2Proximity switches: ×2 |
Mechanical switches: ×2Proximity switches: ×2 |
Mechanical switches: ×2Proximity switches: ×2 |
|
External Shell |
Polyurethane, Black |
Polyurethane, Black |
Polyurethane, Black |
|
Selection Table |
APL - 2 10 N |
|
Shell |
2: Compact3: Precision Protection IP674: Flameproof Exd IIBT65: Explosion - proof Exd IICT6 |
|
Switch Type |
Bolt - on Position Indicator |
|
Mechanical Switch |
10: 2 - SPOT11: 1 - SPDT12: 2 - SPDT13: 2 - SPST14: 2 - SPDT16: 2 - SPOT + Analog Output (4 - 20mA) |
|
Proximity Switch |
20: 8.8F XJ3 - Y3 - N21: 8.8F XJ3 - Y3 - P22: 8.8F XJ3 - Y3 - S23: NBB2 - V3 |
|
Magnetic Sensor Switch |
30: General Type |

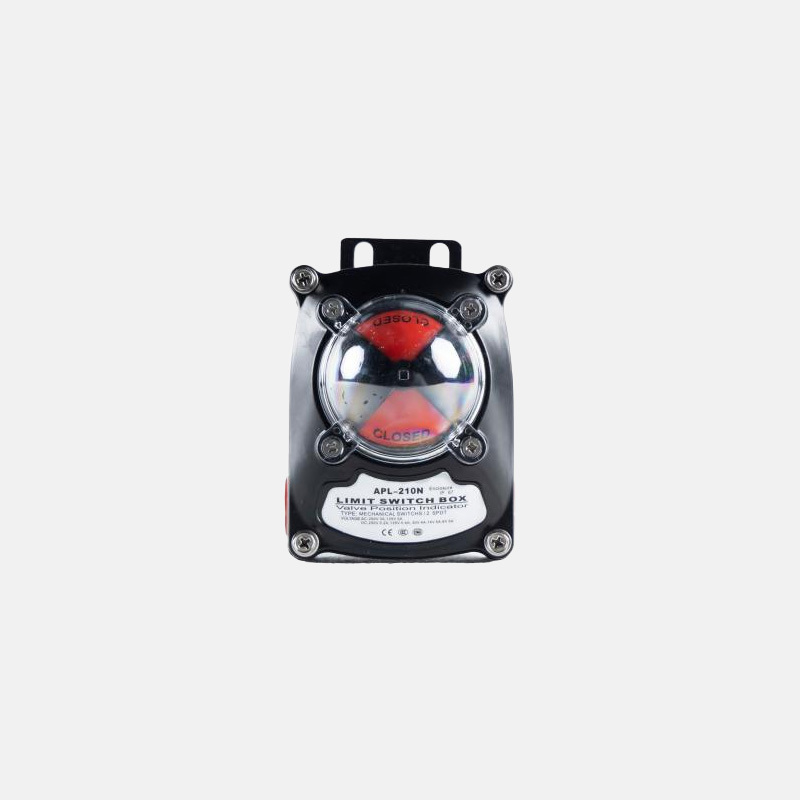

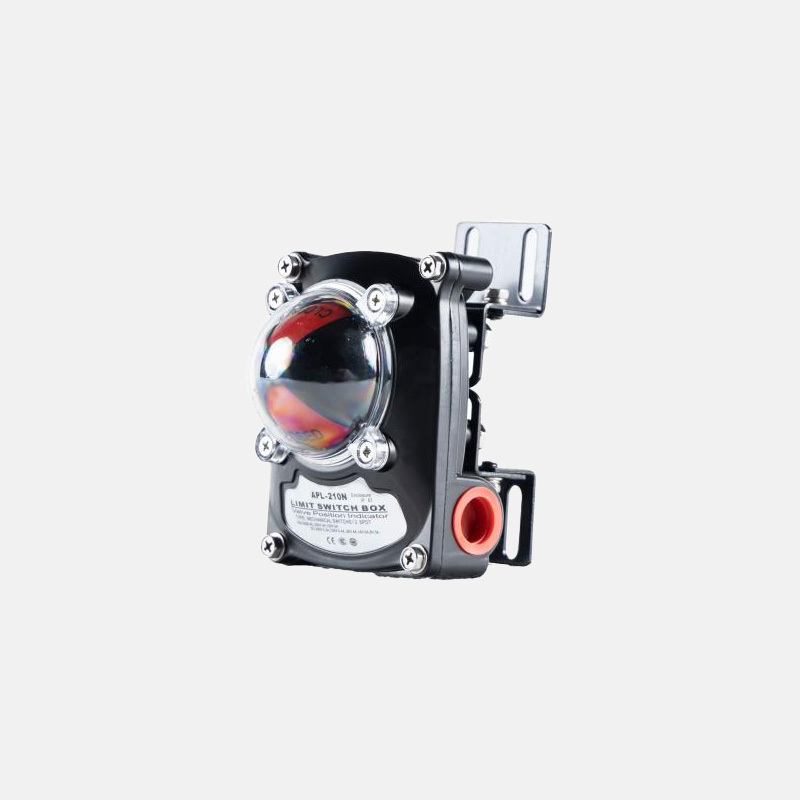

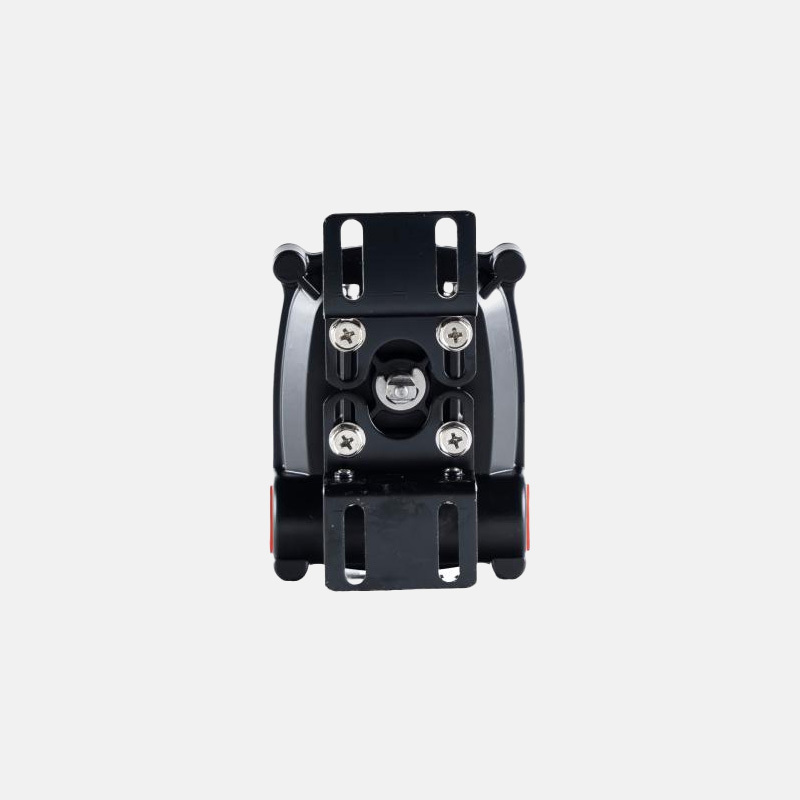

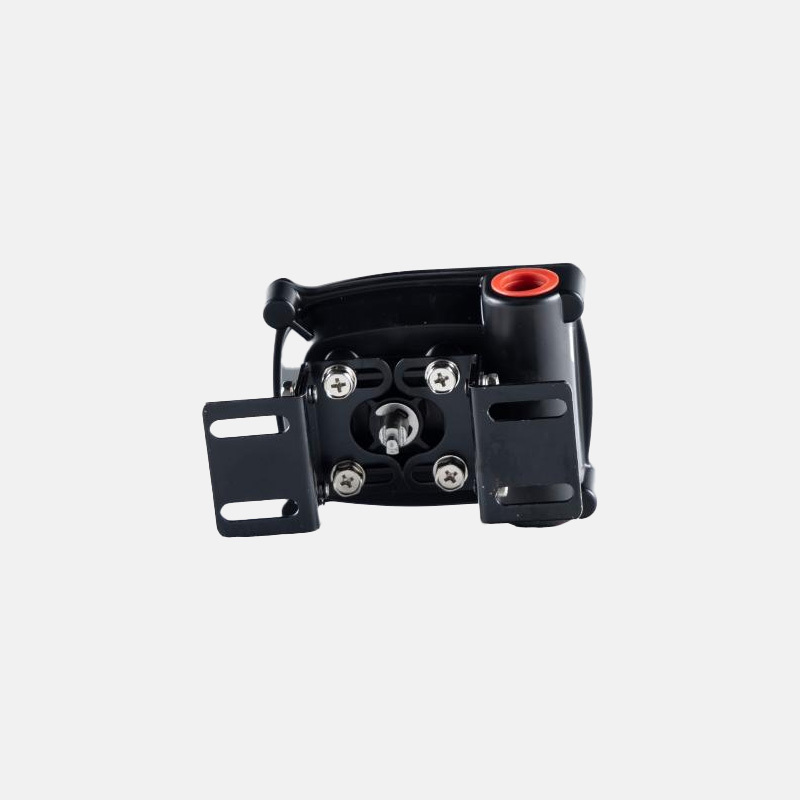

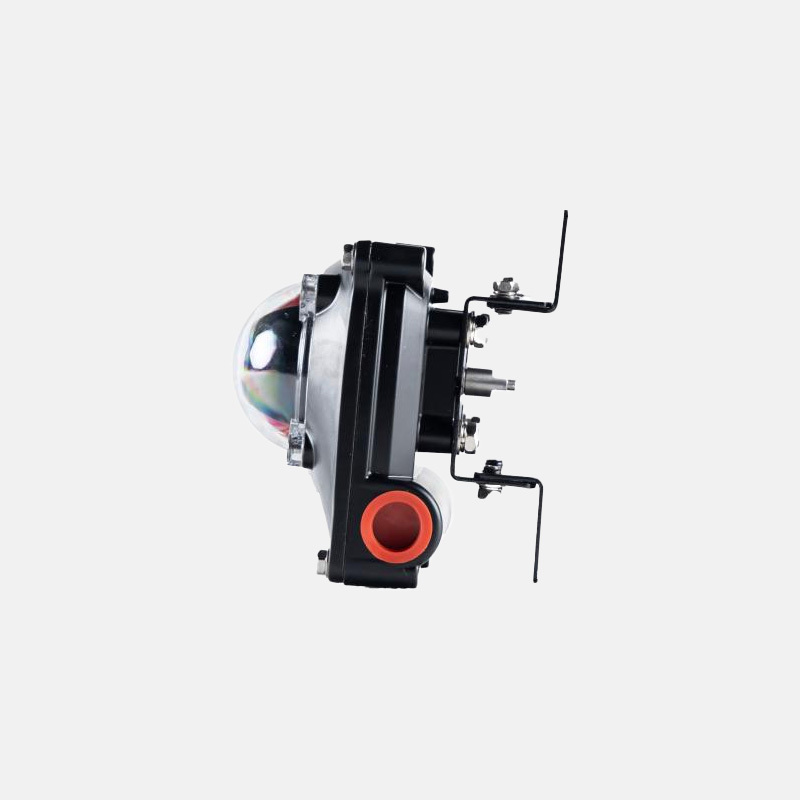

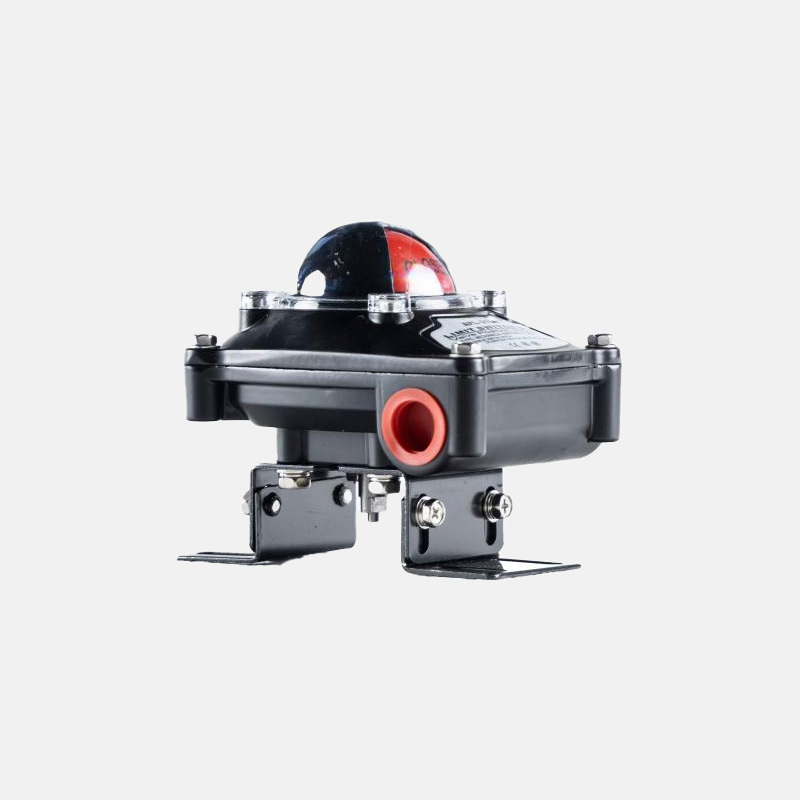

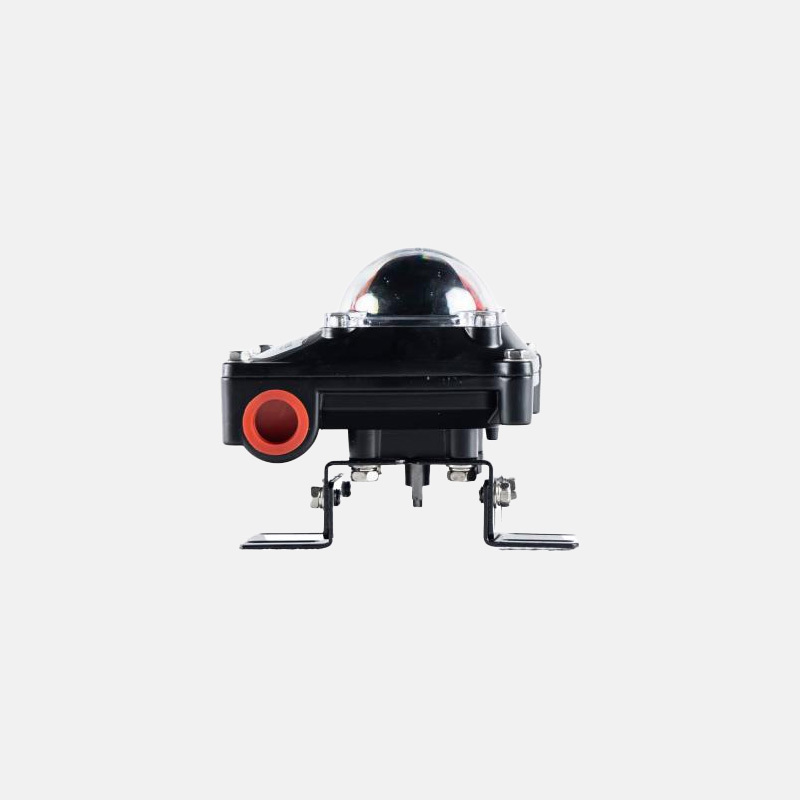

Functional Features: The pneumatic valve limit switch, also known as the responder or receiver, serves as a device for transmitting valve position signals;
It can be independently installed and maintained easily; Settings can be made without tools; It is made of sturdy and compact cast aluminum; No adjustments are required after setting.
