Product Series: TeSys, TeSys Deca
Product Name: TeSys LRD, TeSys Deca
Product Type: E-type 3-pole thermal overload relay
Product Short Name: LRD
Relay Application: Electric motor protection
Product Applicable Range: LC1D09…D38
Relay Setting Range: 2.5…4 A
Compliance Standards: GB 14048.4, IEC 60947-4-1
Product Certifications: CCC, CE, UKCA
IP Protection Grade: IP20 conforming to IEC 60529
Protective Measures: TH conforming to IEC 60068
Ambient Temperature: -20…60 °C without derating, conforming to IEC 60947-4-1; -20…70 °C with derating
Storage Ambient Temperature: -60…70 °C
Fire and Short Circuit High Temperature Resistance: 850 °C, conforming to IEC 60695-2-1
Flame Retardancy: V1, conforming to UL 94
Impact and Vibration Resistance Performance: Vibration resistance: 6 gn, conforming to IEC 60068-2-6; Impact resistance: 15 gn,, 11 ms, conforming to IEC 60068-2-7
Insulation Performance: 6 kV on…at 50 Hz, conforming to IEC 60255-5

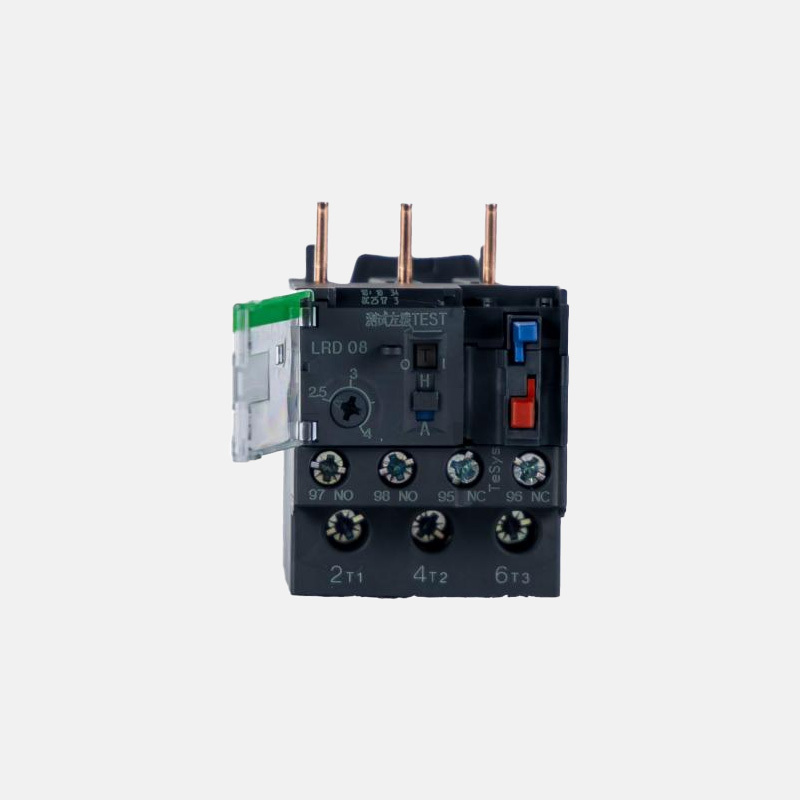

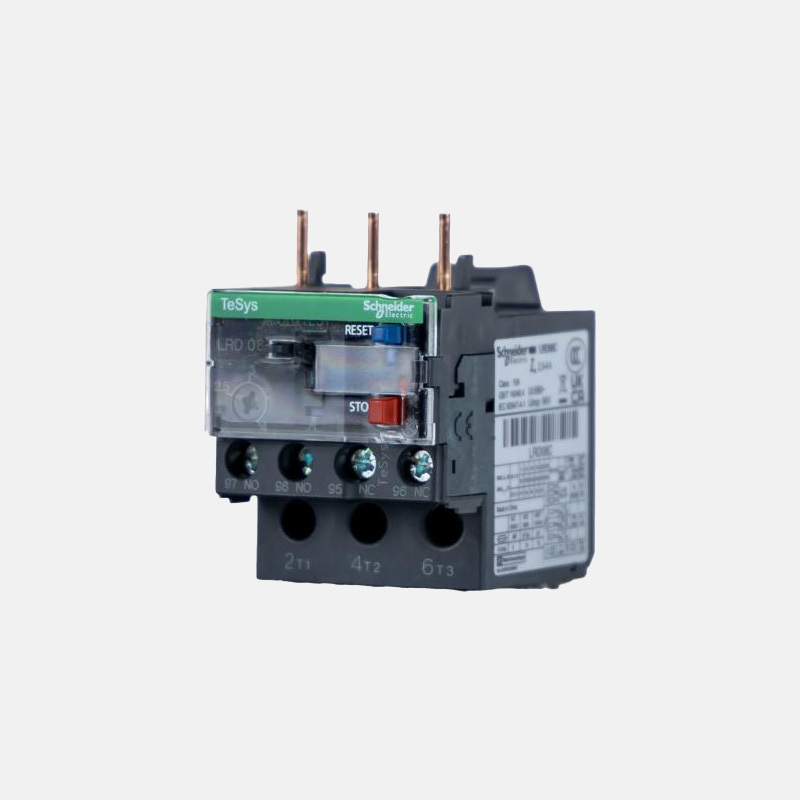

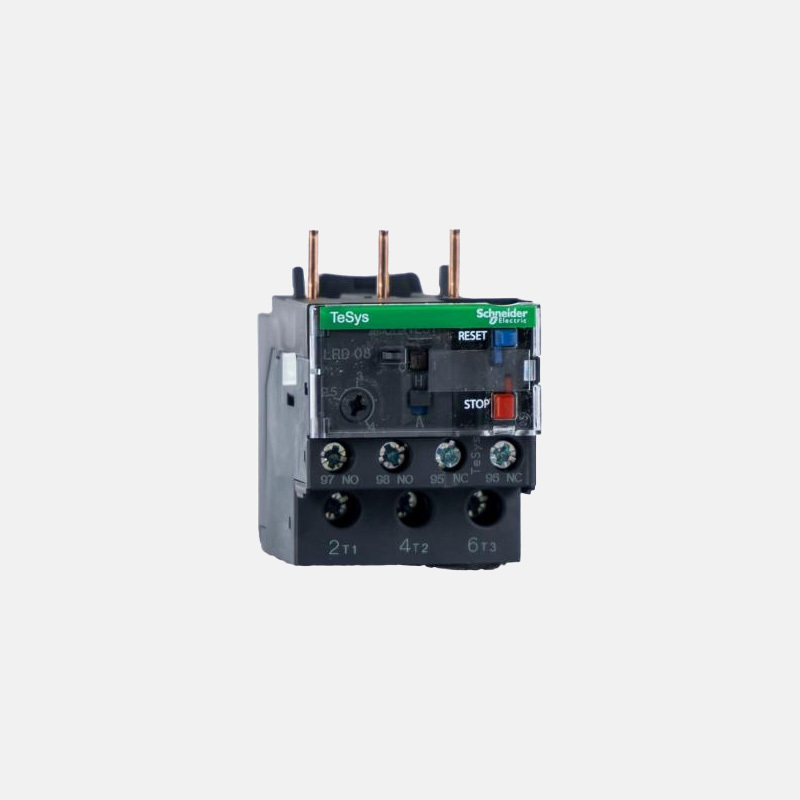

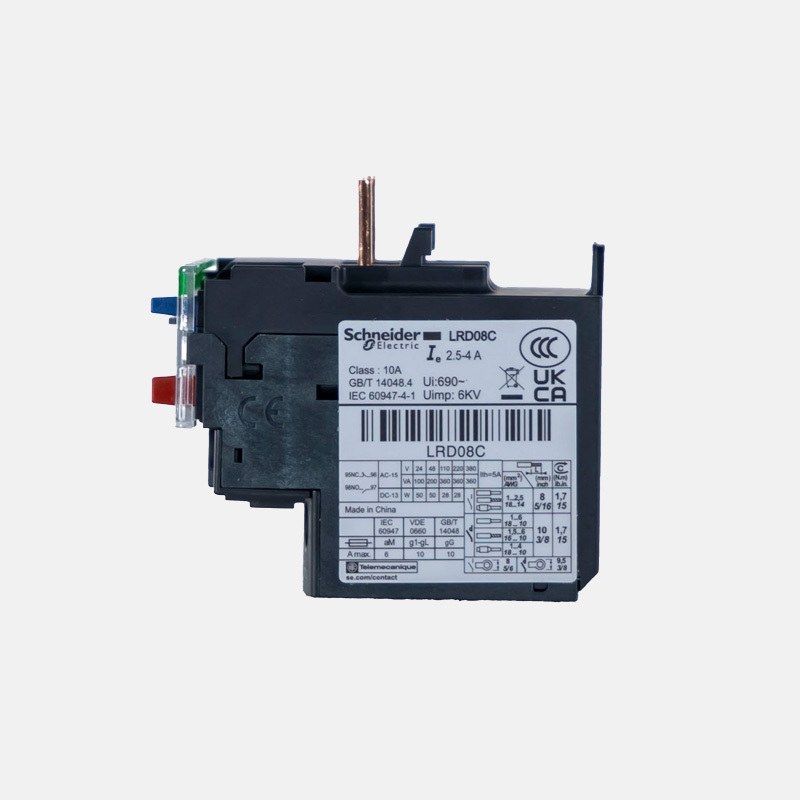

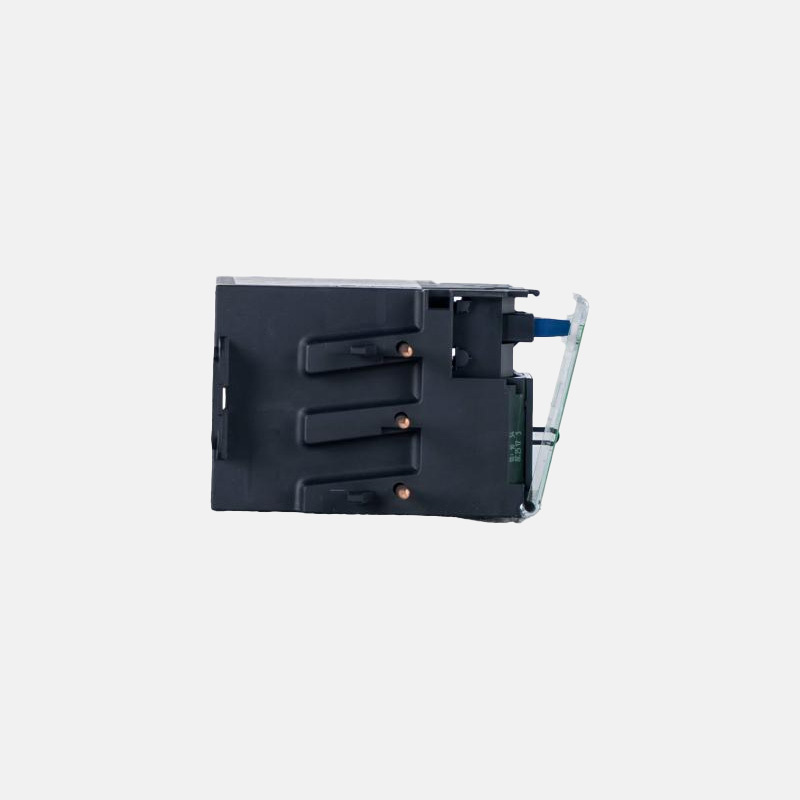

Specification and Model: Schneider 3-level thermal overload relay LRD08C
Function and Features: Motor protection.
Application Scope: Tesys D contactors are designed for various control systems; they can be used as motor starters in various application scenarios. Compact in size, easy to install, durable, and easy to maintain.
Compact Installation:
Contactors up to 38A and protection components are only 45mm wide;
The surge suppressor installation does not require tools and can be directly inserted into the contactor without occupying more space;
Reversible contactors are only 90mm wide, with mechanical interlock not occupying additional space, and installation takes almost no time;
The starter components provide pre-wired modules, making the assembly of the starter convenient and aesthetically pleasing.
High Integration:
Contactors up to 100A integrate 1 normally open/1 normally closed auxiliary contact;
The DC coil has built-in bidirectional current-limiting diodes;
The reversible contactor group has built-in bidirectional current-limiting diodes;
The innovative DC low-power contactor simplifies the design of automation systems.
Safe and Reliable:
The main circuit of the control and protection components are clearly separated in the control circuit;
The mirror contactor design that complies with safety standards ensures one billion reliable actions;
The protective cover prevents the contactor from accidental activation;
The switch and thermal relay dial configurations can be equipped with a lock surface cover to prevent accidental modification.
Excellent Quality:
The DC coil has a wide range of control voltages (0.7 - 1.25Uc);
Strong抗震；
Lower noise；
The strength of the terminal blocks has been improved.
